Space Scroll: A Wireless Hi-Res Scroll Dial on ESP32-C6

Ever spin a mouse wheel and think, “This is fine… but what if it felt like a dial?” That’s the rabbit hole I fell into — right after I finished hand-wiring my own split keyboard and apparently decided one custom HID device wasn’t enough. At this rate I’m assembling a personal HID device army: typed on with the left flank, scrolled with the right. Logitech who? 😅

The goal: a wireless scroll dial with the silky, fine-grained feel of a hi-res trackpad wheel — not the chunky click-click of a basic BLE mouse. Spoiler: it works, but only after I taught ESP-IDF’s NimBLE stack that mouse feature reports are a thing.

Table of Contents

1. Motivation & The Engineer Bo Rabbit Hole
2. Hardware: ESP32-C6, AS5600, and Friends
3. Reading the Dial: AS5600 & Scroll Math
4. BLE HID: Why Hi-Res Isn’t Just “Send Bigger Numbers”
5. The HID Descriptor: Resolution Multiplier (0x48)
6. Patching ESP-IDF esp_hid: The Feature Report Gotcha
7. Firmware Architecture
8. Debugging: Crashes, evtest, and Re-Pairing
9. Tuning Sensitivity
10. What’s Next?
11. Useful Links & Resources
12. Bill of Materials (BOM)

Motivation & The Engineer Bo Rabbit Hole

I wanted a desk gadget that scrolls like the Logitech MX Master thumb wheel — smooth, analog, infinite — but built from parts I actually own. Commercial “space mice” exist, but where’s the fun in buying one?

Then I found Engineer Bo’s Full Scroll Dial — an nRF52840 + AS5600 build that uses the HID Resolution Multiplier to get true hi-res scrolling on Windows and Linux. The key insight: hosts don’t just want bigger wheel values. They want a negotiated multiplier (120 units = 1 legacy scroll line) via a feature report, exactly as Microsoft’s wheel HID spec describes.

My mission: replicate that on ESP32-C6 with ESP-IDF v6 and NimBLE. How hard could it be?

(Narrator: it was harder than expected.)

My Growing HID Device Army

This isn’t my first rodeo with “why buy it when you can solder it?” Last year I documented building a custom split keyboard from Ergogen to QMK — cardboard plates, diode orientation trauma, TRRS half-duplex debugging, the works. That keyboard handles input. Space Scroll handles scroll. Together they are dangerously close to a full desk takeover.

I’m not building peripherals anymore — I’m recruiting them. My laptop’s Bluetooth pairing screen looks like a war room. Host OS: “How many HID devices do you need?” Me: “Yes.”

If you survived the split keyboard build log, the scroll dial is the same energy: read the spec, patch the stack, stare at evtest until joy appears.

Hardware: ESP32-C6, AS5600, and Friends

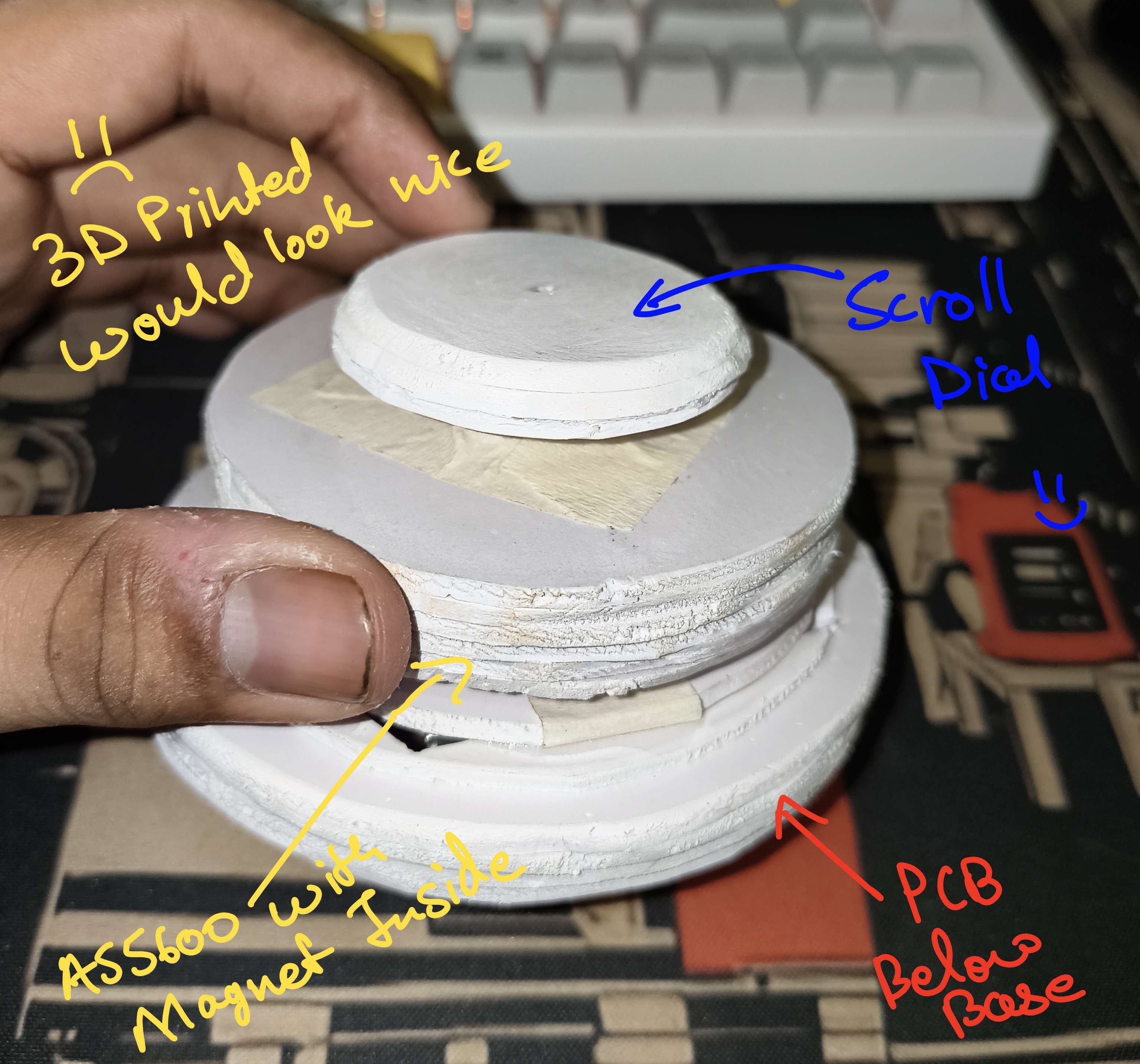

The build centers on an ESP32-C6 dev board (BLE 5, low power, plenty of GPIO) and an AS5600 12-bit magnetic rotary encoder over I2C. A diametrically magnetized disc on the dial shaft gives absolute angle; firmware tracks deltas and maps them to scroll units.

Power: LiPo with a resistor divider (R1=100K to Li+, R2=220K to GND) for rough state-of-charge. Below ~3.35 V under load, the WS2812 goes red — your cue to charge before the dial dies mid-scroll.

Status LED colors:

• Blue pulse — advertising, waiting for a host
• Green — connected over BLE
• Red — low battery

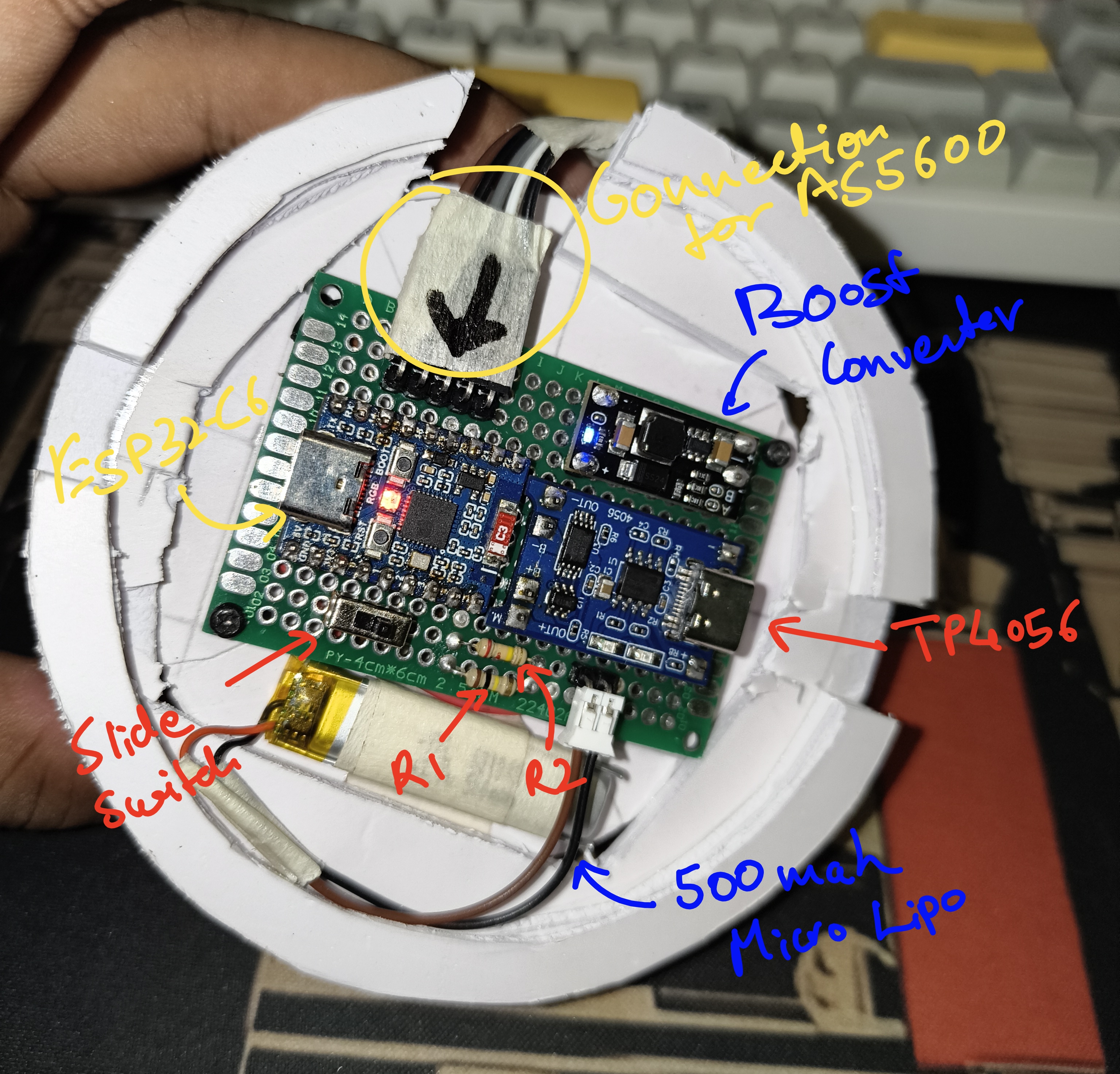

Everything is wired on a hand-soldered DIY PCB — ESP32-C6, AS5600, WS2812, LiPo connector, and the resistor divider all on one board. No fancy fab house yet; just copper, flux, and stubborn optimism.

Reading the Dial: AS5600 & Scroll Math

The AS5600 reports a 0–4095 count per revolution. Because it’s absolute, firmware must unwrap deltas across the 0/4095 boundary — otherwise a slow turn near wrap-around looks like a wild spin.

static int unwrap_encoder_delta(int prev_count, int count)
{
    constexpr int half_rev = espp::As5600::COUNTS_PER_REVOLUTION / 2;
    int diff = count - prev_count;
    if (diff > half_rev) {
        diff -= espp::As5600::COUNTS_PER_REVOLUTION;
    } else if (diff < -half_rev) {
        diff += espp::As5600::COUNTS_PER_REVOLUTION;
    }
    return diff;
}

Each sample converts encoder counts to degrees, then accumulates scroll units:

• Hi-res mode: units = delta_deg × (120 / BOARD_SCROLL_DEG_PER_LINE)
• Legacy fallback: lines = delta_deg / BOARD_SCROLL_DEG_PER_LINE

With BOARD_SCROLL_DEG_PER_LINE = 12, you get 10 hi-res units per degree and 120 units per full legacy line — matching the HID physical maximum.

The dial task runs every 5 ms, accumulates fractional scroll in a float buffer, and only sends a HID report when at least 1 unit is ready. Clockwise dial rotation maps to scroll down (negative wheel on Linux).

BLE HID: Why Hi-Res Isn’t Just “Send Bigger Numbers”

A naive approach: advertise as a BLE mouse and send wheel values of ±120. Linux will dutifully emit both REL_WHEEL=±1 and REL_WHEEL_HI_RES=±120 on every event. That feels broken — huge jumps, not smooth scrolling.

Working hi-res looks like this in evtest:

Event: time 12345.678, type 2 (EV_REL), code 11 (REL_WHEEL_HI_RES), value 3
Event: time 12345.679, type 2 (EV_REL), code 11 (REL_WHEEL_HI_RES), value -1
Event: time 12345.680, type 2 (EV_REL), code 11 (REL_WHEEL_HI_RES), value 6

Small, varying REL_WHEEL_HI_RES values. REL_WHEEL (code 8) stays at 0 most of the time — it only ticks ±1 when accumulated hi-res crosses 120.

The host negotiates this via the Resolution Multiplier feature report. Until that’s set up, you’re stuck in legacy land.

The HID Descriptor: Resolution Multiplier (0x48)

The report map follows the pattern from ESP32-BLE-Mouse #78 and Engineer Bo’s nRF build:

• Input report ID 1: [X, Y, Wheel] — 3 bytes, relative
• Feature report ID 1: Resolution Multiplier (usage 0x48), logical 0–1, physical 1–120

/* Excerpt from dial_ble.c — feature report is the magic sauce */
0x09, 0x48,       /*       Usage (Resolution Multiplier) */
0x15, 0x00,       /*       Logical Minimum (0) */
0x25, 0x01,       /*       Logical Maximum (1) */
0x35, 0x01,       /*       Physical Minimum (1) */
0x46, 0x78, 0x00, /*       Physical Maximum (120) */
0x75, 0x08,       /*       Report Size (8) */
0x95, 0x01,       /*       Report Count (1) */
0xB1, 0x02,       /*       Feature (Data,Var,Abs) */

On connect, Linux sends a SET_REPORT to enable the multiplier. The device advertises as SpaceScroll (vendor 0x16C0, product 0x05E0) so re-pairing forces the host to reload the descriptor.

Re-pair after every descriptor change. Bluetooth hosts cache HID report maps aggressively. Flash new firmware → remove the old pairing → pair fresh. Trust me on this one.

Patching ESP-IDF esp_hid: The Feature Report Gotcha

Here’s where the project stopped being a weekend hack and became a firmware archaeology expedition.

Stock ESP-IDF’s esp_hid_common.c registers input reports for mice, but silently drops feature reports. No feature GATT characteristic → Linux can’t negotiate hi-res → calling esp_hidd_dev_feature_set() crashes with assert(p_rpt != NULL) in nimble_hidd.c.

The fix lives in a local component override at components/esp_hid/:

/* esp_hid_common.c — mouse branch now registers FEATURE reports */
if (report->feature_len > 0) {
    esp_hid_report_item_t item = {
        .usage = ESP_HID_USAGE_MOUSE,
        .report_id = report->report_id,
        .report_type = ESP_HID_REPORT_TYPE_FEATURE,
        .protocol_mode = ESP_HID_PROTOCOL_MODE_REPORT,
        .value_len = report->feature_len / 8,
    };
    if (add_report(map, &item) != 0) {
        return -1;
    }
}

Critical build note: CMake only picks up the local override after a full clean:

idf.py fullclean build

Incremental builds keep using the IDF copy in ~/.espressif/... and you’ll wonder why hi-res never works. At boot, the firmware logs parsed reports — you want to see both INPUT and FEATURE for report ID 1.

We also removed the firmware-initiated esp_hidd_dev_feature_set() call. Linux SET_REPORTs the multiplier on its own during HID probe; trying to set it from firmware before the GATT char exists was the crash source. Instead, a delayed task marks hi-res active 500 ms after connect:

static void hi_res_enable_task(void *param)
{
    vTaskDelay(pdMS_TO_TICKS(BOARD_HID_HI_RES_ENABLE_MS));
    /* ... */
    s_hi_res_active = true;
    APP_LOGI("HID hi-res scroll active (multiplier=%d)", DIAL_BLE_SCROLL_HI_RES);
}

Feature report changes from the host still arrive via ESP_HIDD_FEATURE_EVENT if you need to log them.

Firmware Architecture

app_main
 ├── status_led_init()      WS2812: advertising / connected / low batt
 ├── battery_init()         ADC on GPIO5, divider math
 ├── dial_ble_init()        NimBLE HID, report map, GAP advertising
 ├── init_encoder()         AS5600 over I2C (espp component)
 ├── dial_ble_start()       NimBLE host task
 └── dial_task              5 ms loop: read encoder → accumulate → send scroll

Dependencies (via main/idf_component.yml):

• espp/as5600 — magnetic encoder driver
• espp/i2c — I2C helper
• espressif/led_strip — WS2812

Build targets:

idf.py set-target esp32c6
idf.py build flash monitor          # debug logging
idf.py -DSDKCONFIG_DEFAULTS="sdkconfig.defaults;sdkconfig.defaults.release" build  # release

Want to see the code, patched esp_hid component, and board config? Check out the Space Scroll repo on GitHub.

Debugging: Crashes, evtest, and Re-Pairing

The crash

Connect → 500 ms later → reboot. Root cause: esp_hidd_dev_feature_set() asserting because no feature report was registered. Fix: patch esp_hid + don’t call feature_set from firmware.

Verifying on Linux

sudo evtest
# Select SpaceScroll, rotate slowly

Re-pairing

bluetoothctl
# remove XX:XX:XX:XX:XX:XX
# scan on
# pair / trust / connect SpaceScroll

Confirm descriptor on the host

for d in /sys/bus/hid/devices/*; do
  grep -q SpaceScroll "$d/uevent" 2>/dev/null || continue
  xxd "$d/report_descriptor"
done

Look for usage 0x48 (Resolution Multiplier) in the output.

Optional udev hwdb

If scroll still feels off on some setups:

# /etc/udev/hwdb.d/11-spacescroll-mouse.hwdb
mouse:*:name:SpaceScroll:
 MOUSE_WHEEL_CLICK_ANGLE=7.5
 MOUSE_WHEEL_CLICK_COUNT=120

Then sudo systemd-hwdb update && sudo udevadm trigger.

Tuning Sensitivity

All in main/board_config.h:

DIAL_BLE_SCROLL_HI_RES is fixed at 120 per the HID spec — that’s the physical maximum in the descriptor.

Want snappier scrolling? Lower BOARD_SCROLL_DEG_PER_LINE. Want more precision? Raise it.

What’s Next?

The HID device army marches on:

• 3D-printed enclosure with weighted dial feel
• Sleep modes for battery life
• A macro pad to complete the trifecta (keyboard + dial + pad = full desk sovereignty) — with the OLED screens the split keyboard never got. Fair’s fair: the pad gets the fancy display.

Previously in the army: Custom Split Keyboard: From Ergogen to QMK — hand-cut cardboard, QMK firmware, and enough soldering to void several warranties.

Useful Links & Resources

• Space Scroll — GitHub
• 42_wings split keyboard — GitHub
• Engineer Bo — Full Scroll Dial (YouTube)
• ESP32-BLE-Mouse hi-res discussion #78
• Microsoft Mouse HID design guidelines
• AS5600 datasheet (AMS)
• ESP-IDF NimBLE HID docs
• espp AS5600 component
• Space Scroll firmware (GitHub)

Bill of Materials (BOM)

Note: Prices are approximate and may vary. No affiliate links — yet.

Building a hi-res BLE scroll dial is equal parts HID spec reading, ESP-IDF spelunking, and evtest staring. Pair it with a hand-wired split keyboard and your desk becomes a custom HID device army — one peripheral at a time. If you want scroll that actually feels smooth on Linux, the Resolution Multiplier feature report isn’t optional — and neither is idf.py fullclean. Happy scrolling! 🌀 ⌨️
